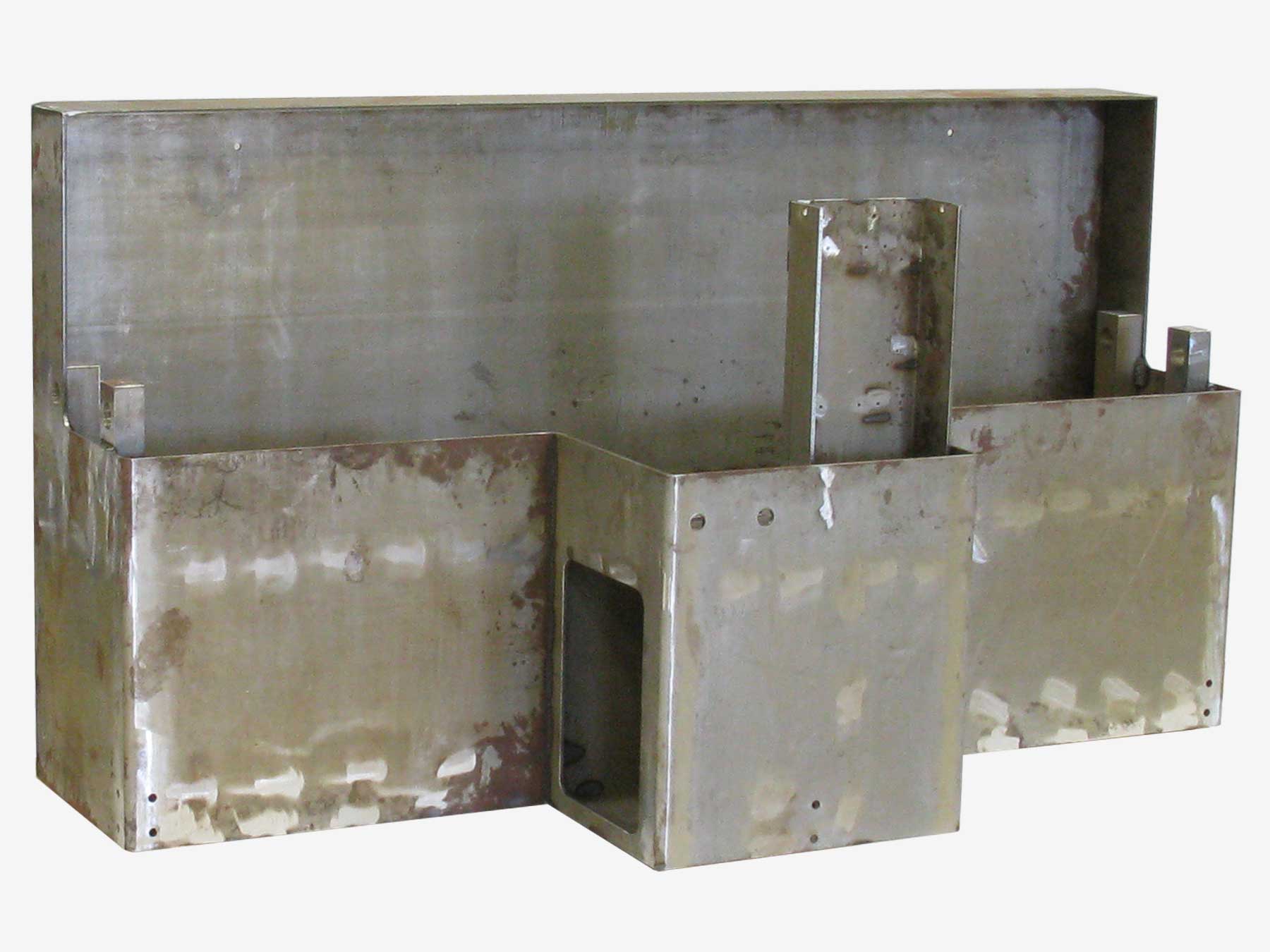

All Welded Table

The table is a single piece, welded from 1/4 inch thick steel plate and precision machined.

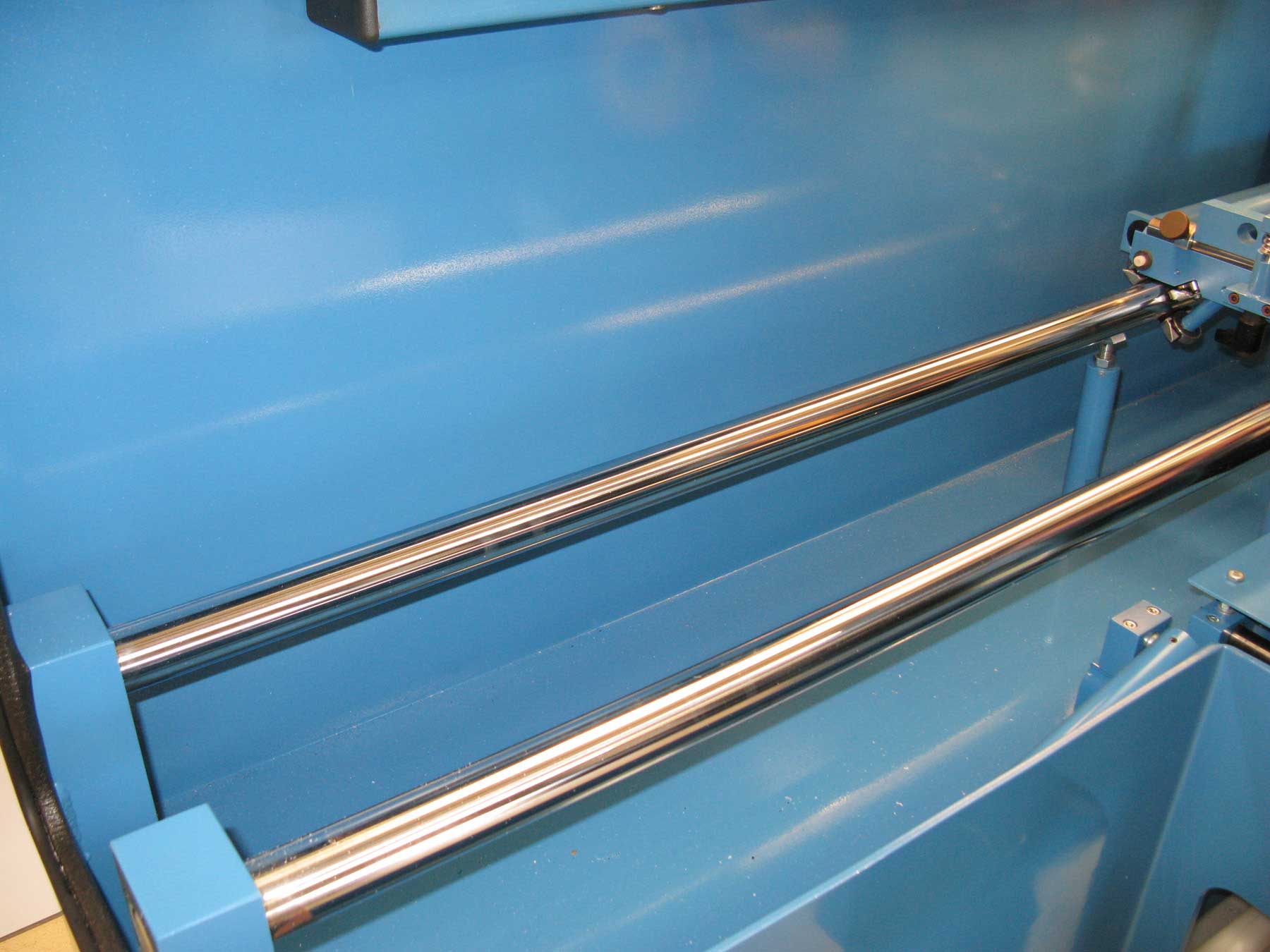

Chromed Track Shafts

The track shafts are induction hardened, turned, ground, polished and hard chrome plated for maximum precision and durability. Then they are mounted directly to the precision machined, all welded steel table.

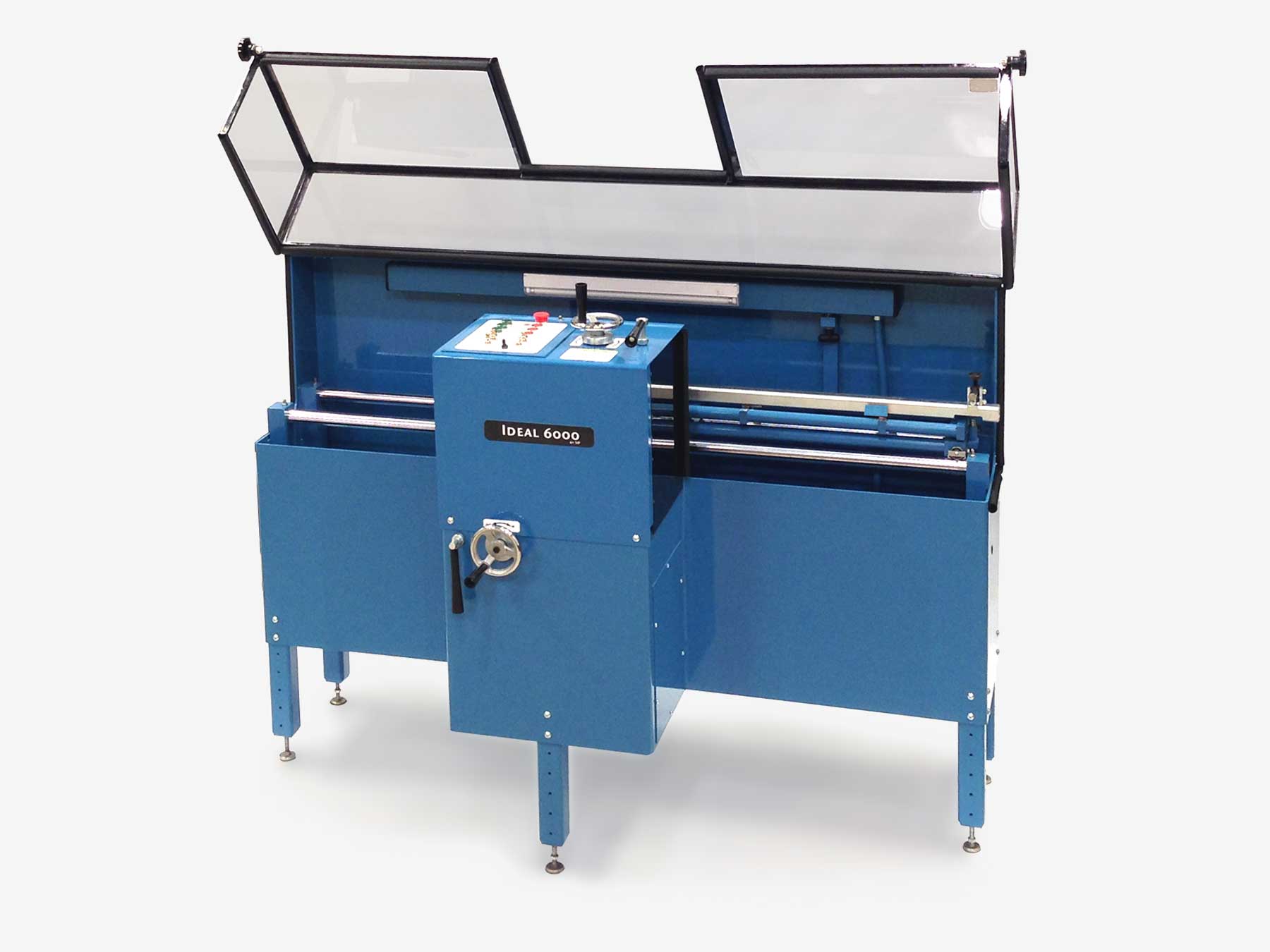

Fully Enclosed

The door completely encloses the grinder and has polycarbonate panels for good visibility and opens and closes easily. This makes it the quietest bed knife grinder available.

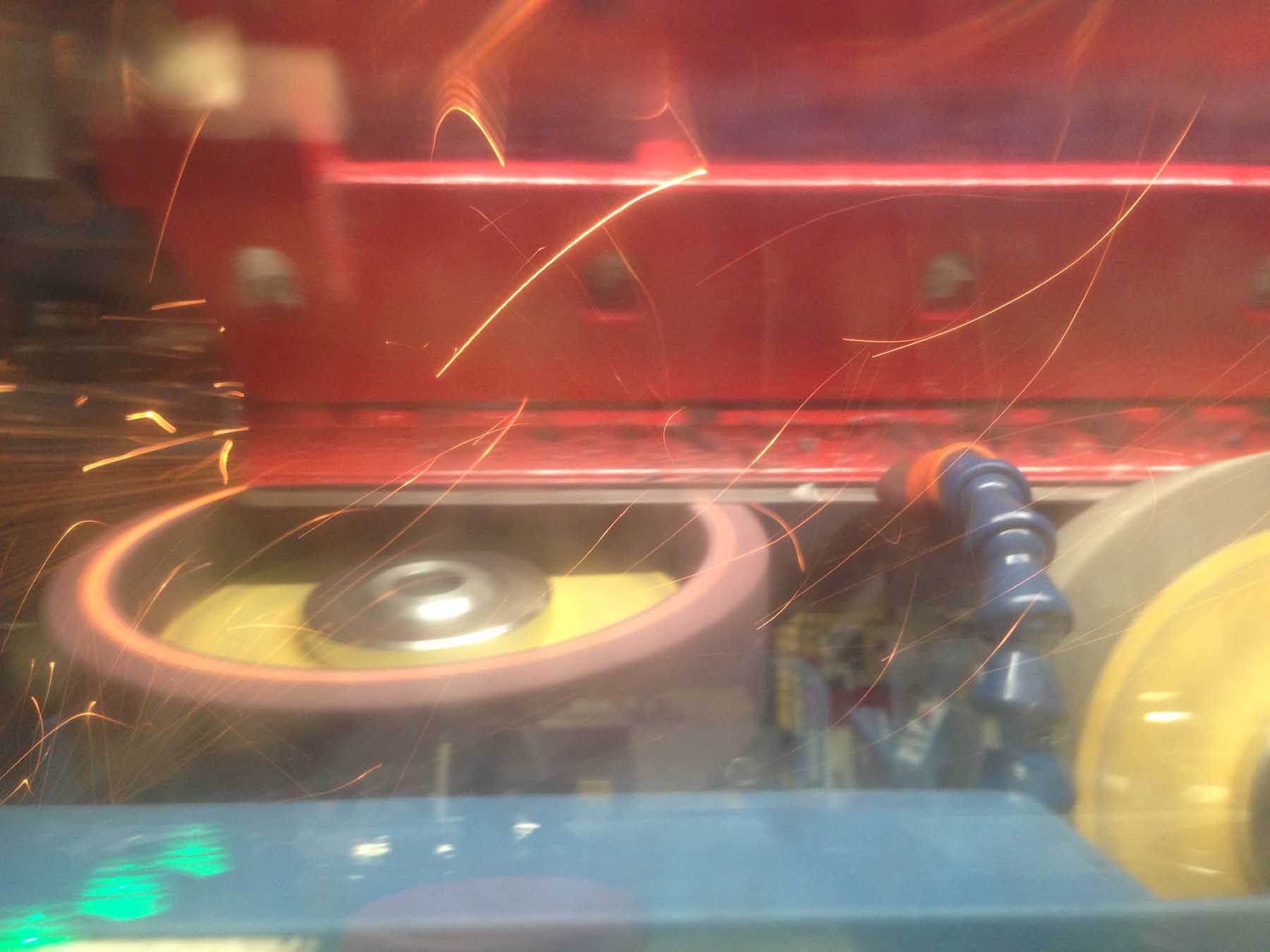

Dual Grinding Heads

Dual grinding heads eliminate change over from front to top face and helps maintain consistency between bed knives. The motor for the top face head is under the grinding wheel to eliminate interference with awkward bed knives.

The dual 3/4 horsepower, totally enclosed-fan cooled grinding motors provide all the power you will need and are maintenance free.

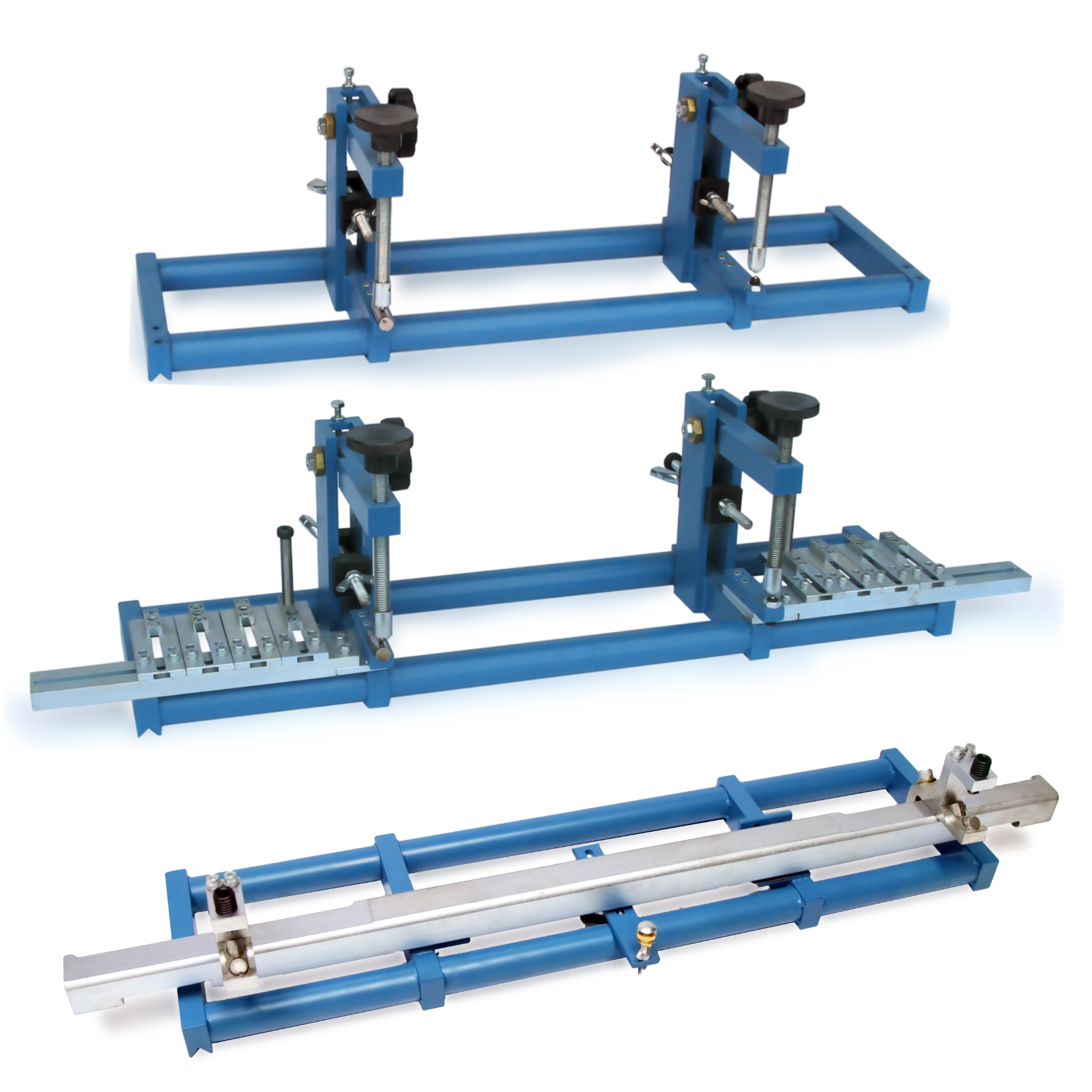

Pallet System

Your choice is either the V-Pallet (shown bottom), the Bottom Support Pallet (shown top) or adding the Pin Alignment system (middle).

The Bottom Support Pallet is more universal and can mount any bed knife. It grinds the top face of the bed knife parallel to the bottom within .002 inches. This can reduce variations in drag marks on greens.

The Pin Alinment option requires that the bed knife have pivot mounting bolts. It provides a series of nuts that can be set for different bed knives. Precision pins are mounted in the nuts. This will automatically align the front face of the bed knife to the pivot mounting bolt to within .002 inches.

The V-Pallet requires that the bed knife have pivot mounting bolts. It aligns both the front face and the top face of the bed knife to the pivot mounting bolt to within .002 inches.

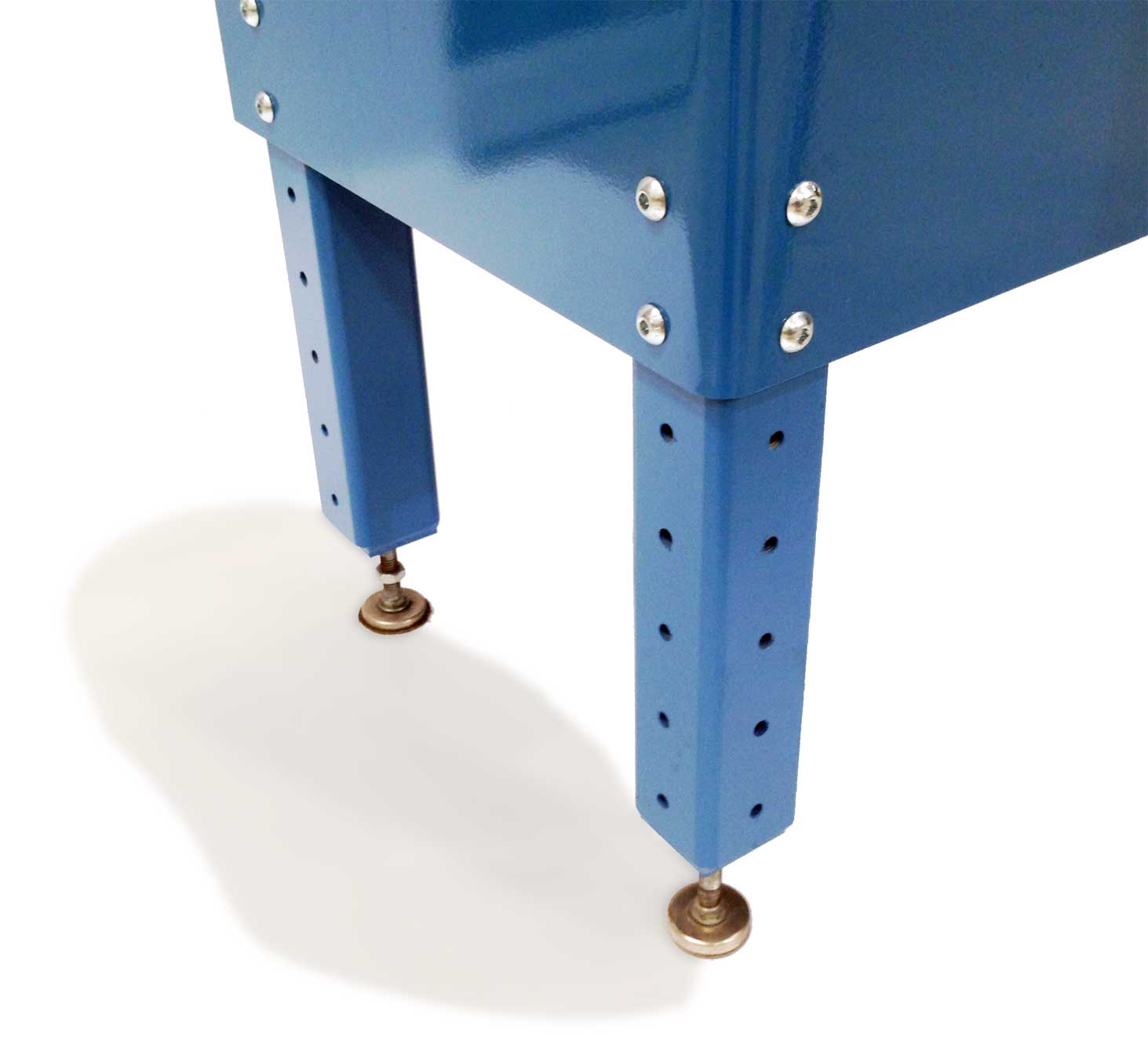

Adjustable Legs

With over 12 inches of adjustment, the legs let you set the grinder to a comfortable operating height.

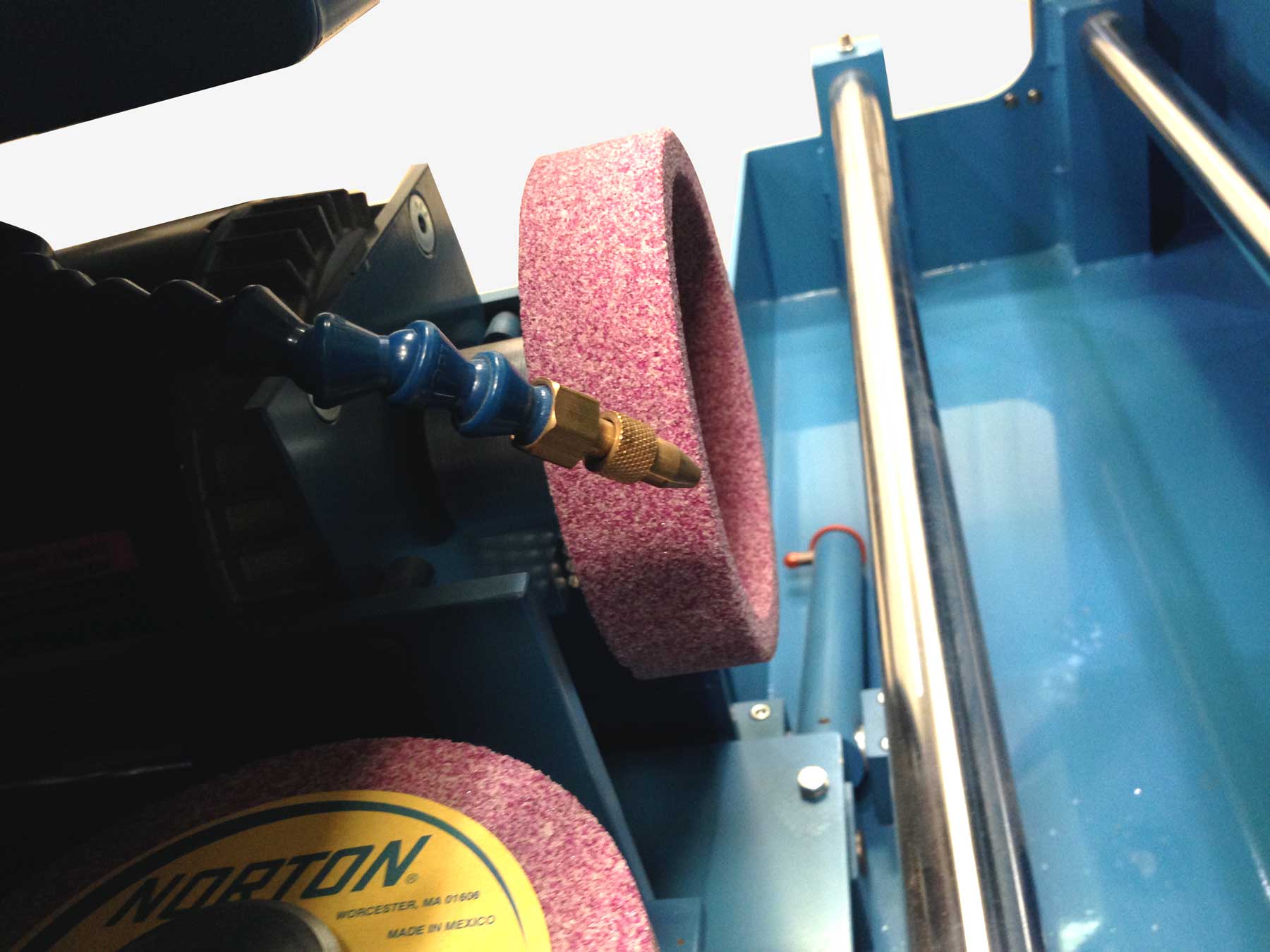

Mist Coolant

The coolant mist system gives optimum cooling while using once through, always clean coolant. This eliminates disposal problems, odor and infections.
